When replacing a water-damaged GM Body Control Module (BCM) equipped with an MCU RH850 R7F701053 and a 24C32 EEPROM, simply transferring the 24C32 EEPROM data is insufficient. Incomplete cloning results in functional failures, such as unresponsive power windows or driver/passenger door locks.
Technical Solution & Workflow

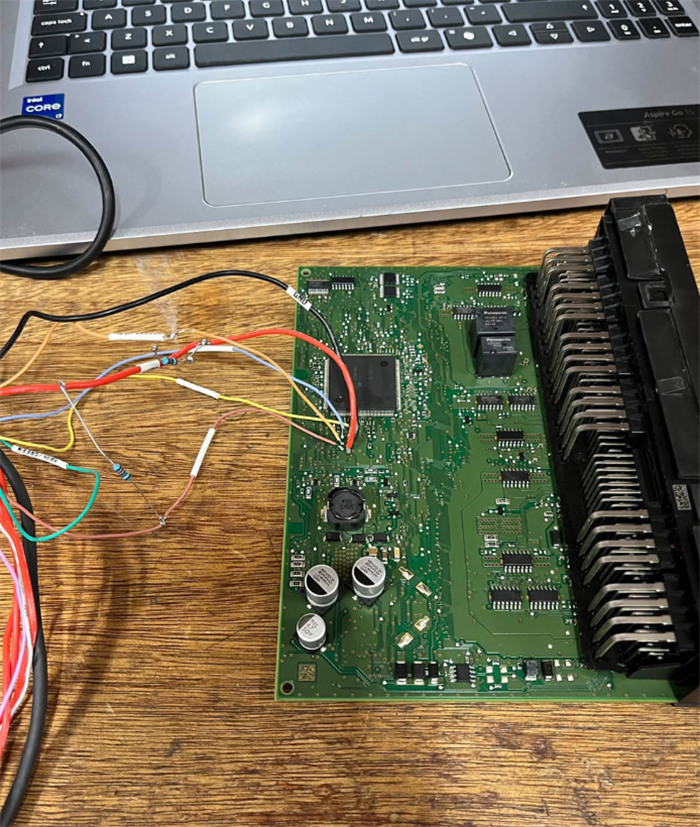

To achieve a complete function clone without damaging the MCU using Xhorse Multi-Prog:
- EEPROM Transfer: Copy the physical 24C32 EEPROM contents to the replacement board.

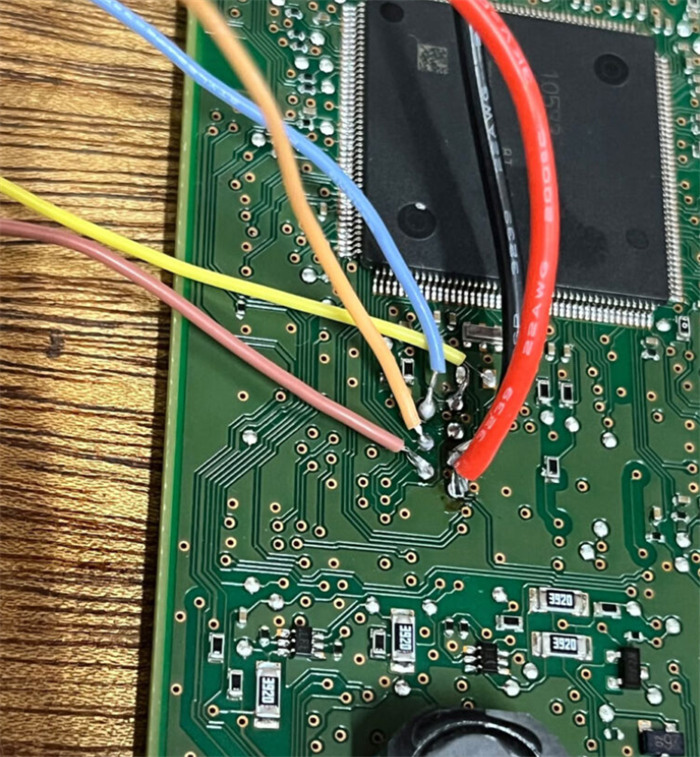

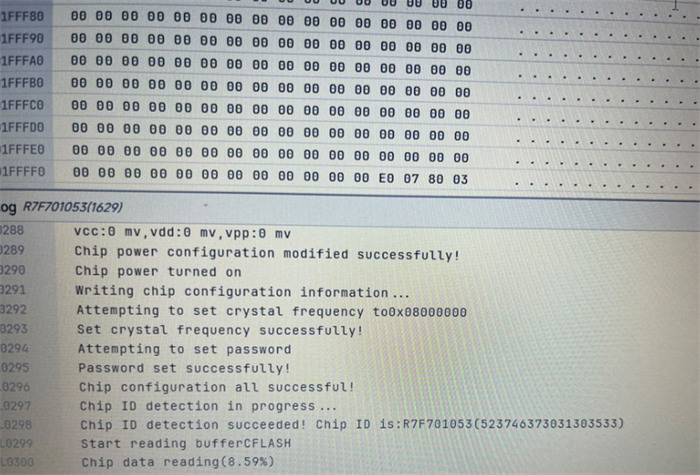

- MCU Flash Transfer: Read and write the CFLASH (Code Flash) memory from the original RH850 R7F701053 MCU to the target unit.
- Data State Note: The DFLASH (Data Flash) on this specific chip variant reads as FF FF FF and does not require manual data modification.
Pre-Procedure Diagnostic Requirement
Always perform a DTC (Diagnostic Trouble Code) scan before attempting any BCM cloning or recalibration:
- Baseline Verification: Reading DTCs prior to hardware interventions identifies pre-existing faults.
- Issue Attribution: It establishes a clear line between pre-existing electrical failures and potential errors introduced during module flashing.
