Replacing a damaged Land Rover Freelander 2 Body Control Module (BCM) does not require complex dealer programming if you transfer the original module’s data. You can clone the BCM by reading and writing both the CPU flash and the EEPROM chip using Xhorse VVDI Prog.
Module Details
- Target Vehicle: Land Rover Freelander 2

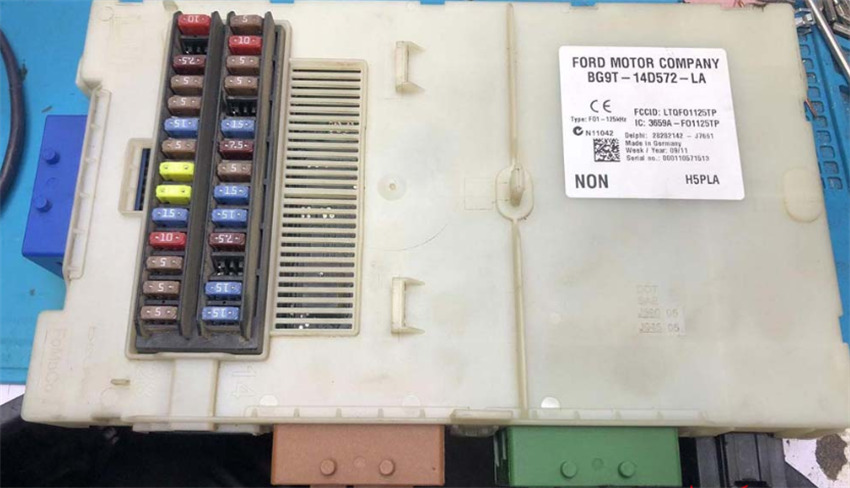

- BCM Part Number: BG9T-14D572-LA
- Programmer Used: Xhorse VVDI Prog Programmer
VVDI Prog Menu Path
- Type: 2-BODY
- Brand/Subtype: Renesas M32C
- Chip: M30882FJ
Cloning Procedure
1.Read & Save Original BCM Data

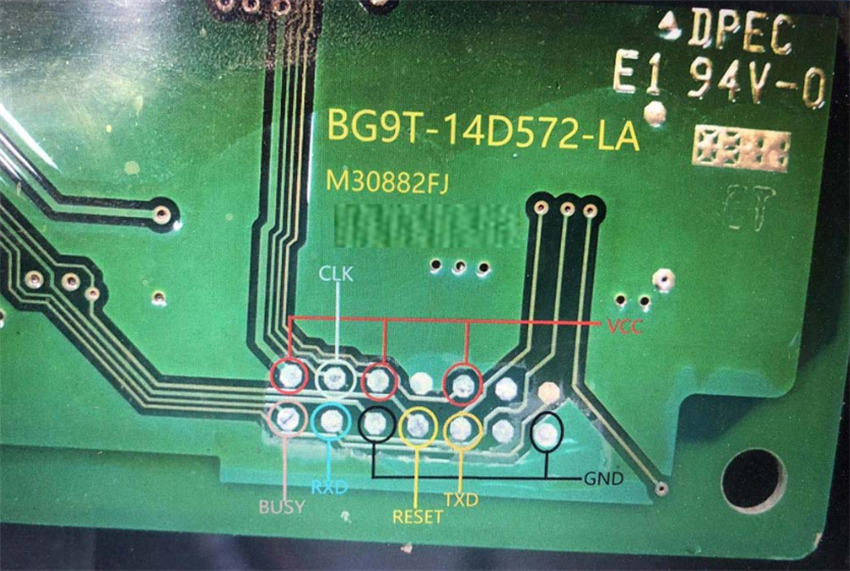

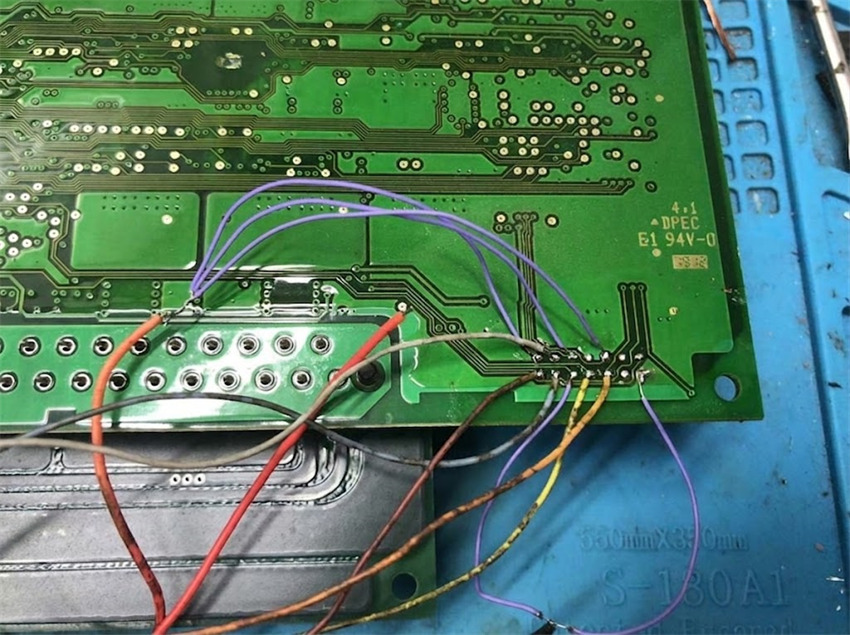

Connect VVDI Prog to the original BCM following the official wiring diagram.

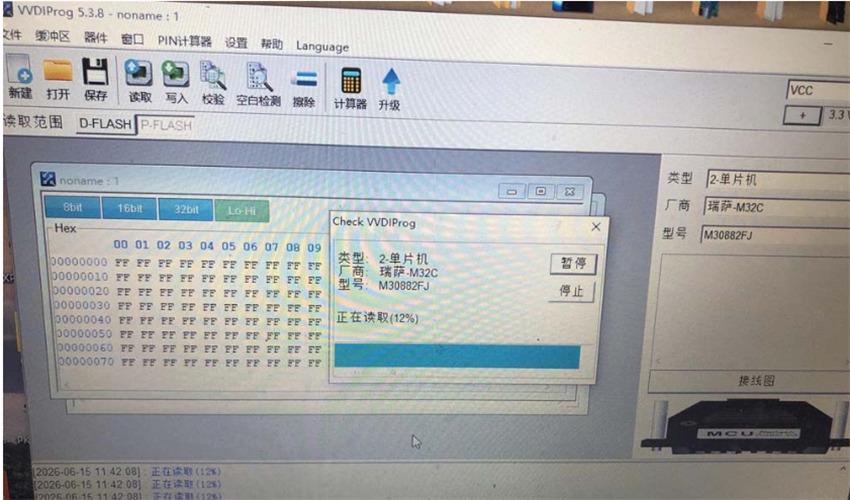

Access the menu path listed above, then read and save the Renesas M30882FJ CPU flash data.
Read and save the 95320 EEPROM data.
2.Write Data to Replacement BCM
Connect VVDI Prog programmer to the donor/replacement BCM (matching part number BG9T-14D572-LA).
Load and write the saved M30882FJ CPU flash file to the target chip.
Load and write the saved 95320 EEPROM file to the target chip.
3.Reassembly & Testing
Reinstall the cloned BCM into the vehicle.
No additional key programming or module coding is required; the car will start and function normally.
