VVDI Key Tool Plus Add 2025 Toyota Alphard 8A Smart Key

A 2025 Toyota Alphard (Korean version) 8A smart key was successfully added with Xhorse VVDI Key Tool Plus.

Hardware & Tools

• Xhorse VVDI Key Tool Plus
• Xhorse XM38 Toyota smart key
• Xhorse Toyota BA AKL 30 pin cable

Key-Steps

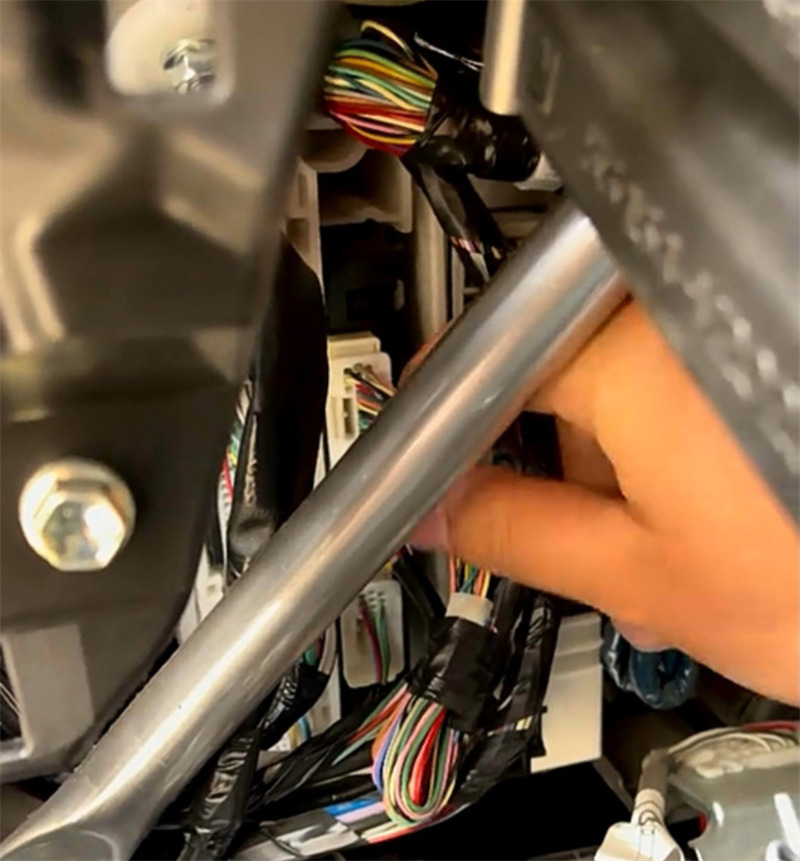

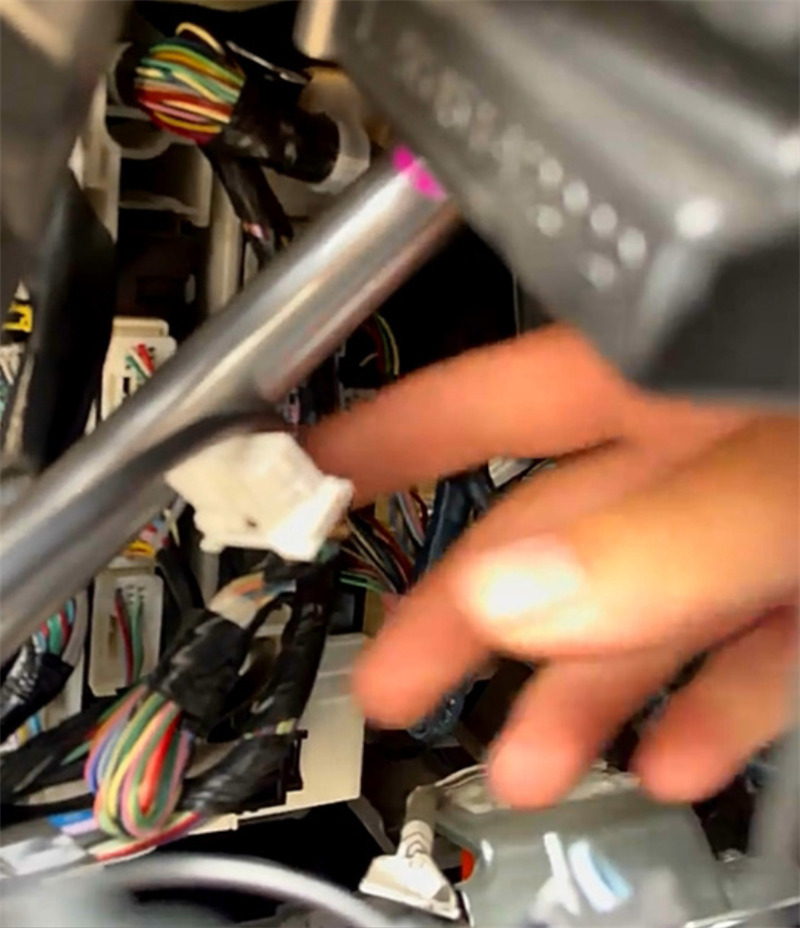

1. Locate the smart box – Under the driver’s side instrument panel. Use the BA AKL cable to bypass the gateway.

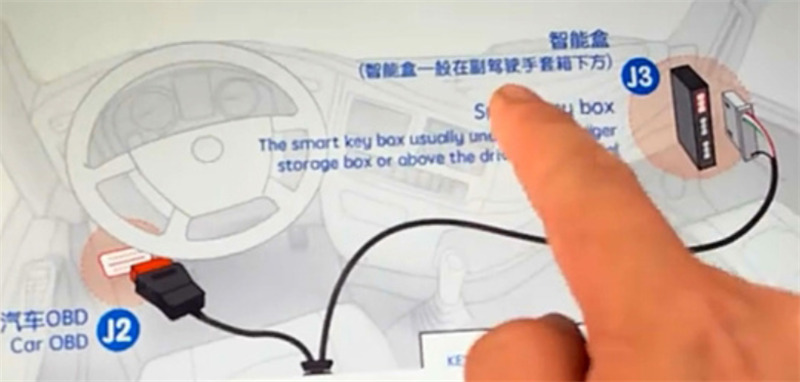

2. Connect cables

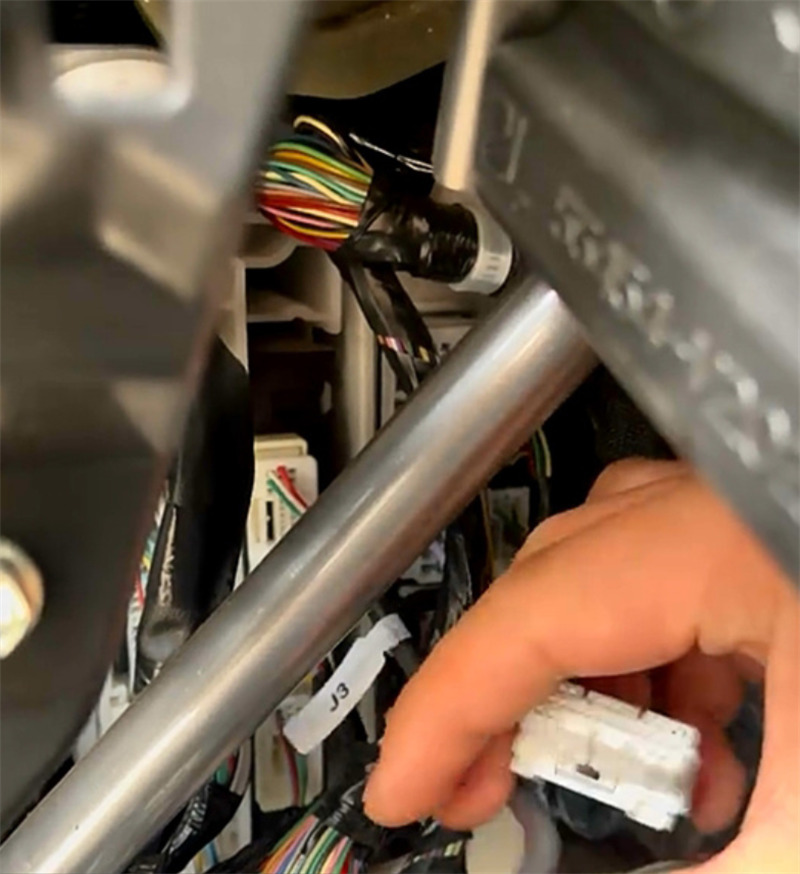

• BA AKL adapter → J3 connector
• J2 connector → OBD socket
• J1 connector → Key Tool Plus

3. Back up immo data

Menu: Select from type -> Type 4 8A P4 BA/B8 option

Keep network stable. Backup time: 3–5 min.

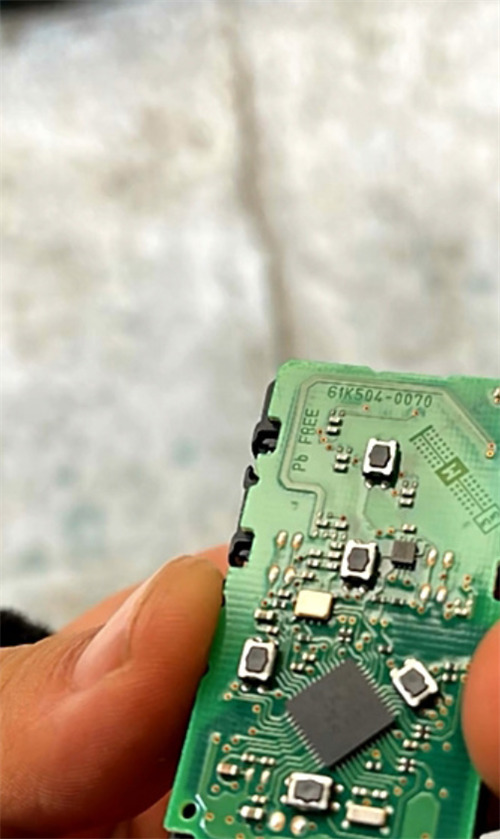

4. Program the XM38 remote – Generate to the correct remote program.

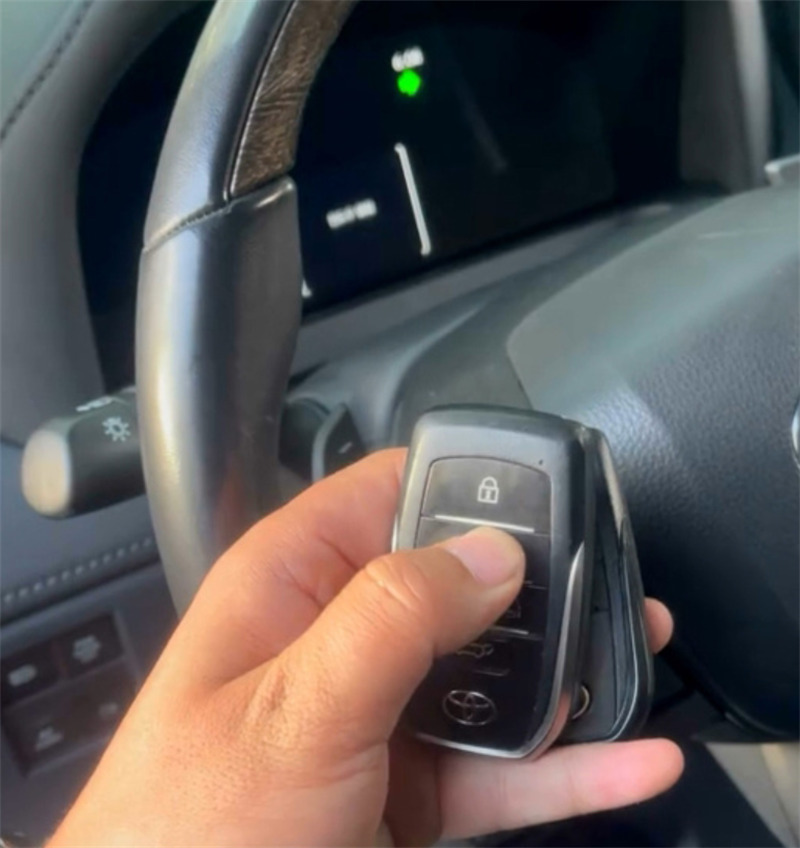

5. Add smart key – Complete via device prompts.
