VVDI Prog Programmer can do MCU, ECU, IMMO ect. Today we will show Eeprom and Flash one type of ATMEL AT24C16.
Tips:VVDI prog just update to V4.5.9(2017-6-28), if you are not have the newest version, you can downlode on our website or this link for free.
Procedures:
Step1: Run VVDI PROG Programmer software and choose detailed type.

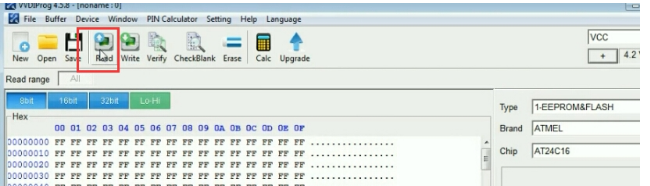

Step2: Read the common eeprom
Notice: please follow the below picture to insert the chip

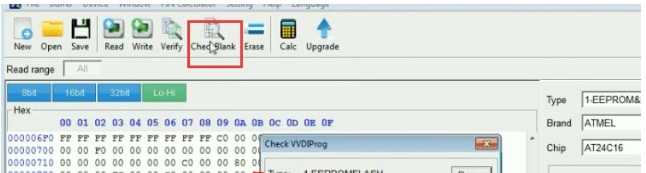

Step3: Click “check blank”
Step4: Click “Open”and open the bin file

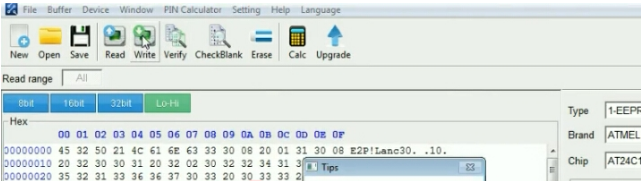

Step5: When the file downlode finished, then click :Write”

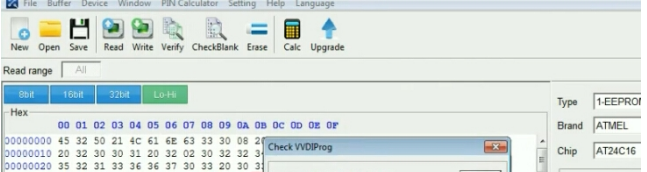

Step6: Write successfully, you can check the file
Step7: Erase process, click “Erase” then confirm Yes

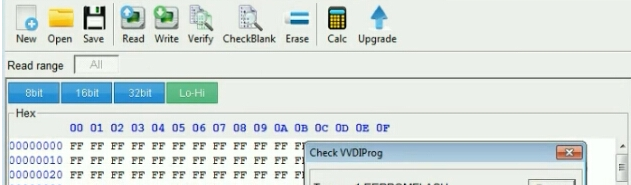

Step8: After Erase, please click “Check Blank” again
Original Xhorse VVDI PROG Programmer V4.5.9
